ESN low profile multi-function MIMO antenna – ‘Sandcastle’

Product Code 8000-310
This low-profile multi-function MIMO antenna is affectionately known as the ‘Sandcastle’ and can support up to 13 functions.  The antenna is airwave approved as well as being ESN ready meaning it will help future proof your vehicle. The ‘Sandcastle’ can be supplied with varying combinations of functions to suit the equipment it is being connected to. It can also be supplied without the tetra whip if this is not required. Please refer to the datasheets for more details.

FREQUENCY BAND

3G, 4G, GPS/Glonas, GSM, LTE, MiMO, SK0200710, Tetra, UHF, WLAN

4x Wideband LTE 2G 3G 4G 5G Elements 13 functions in one antenna
Ultra Wide Bandwidth 700MHz – 6000Mhz Optional MiMo Dual Band WiFi/WiMAX

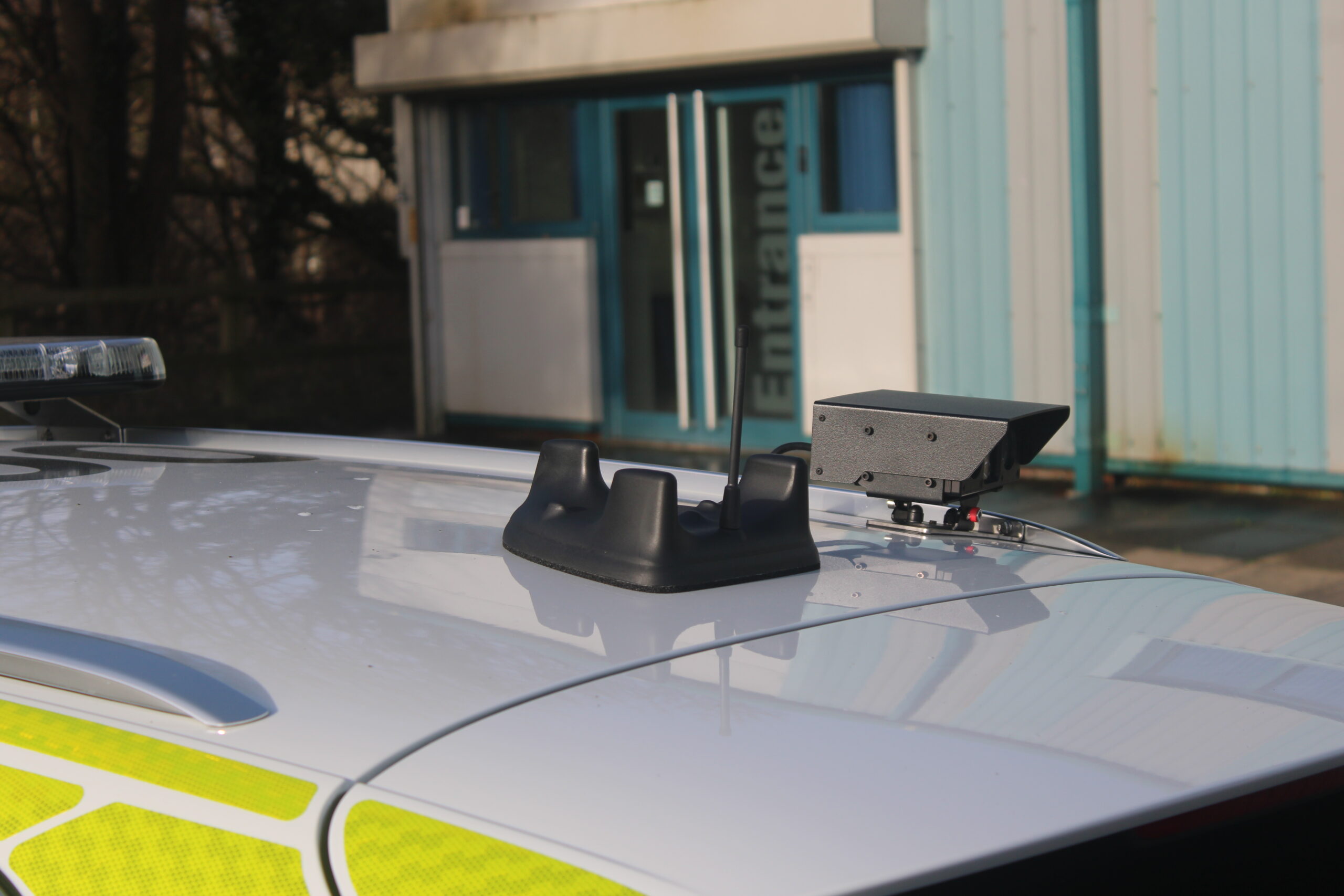

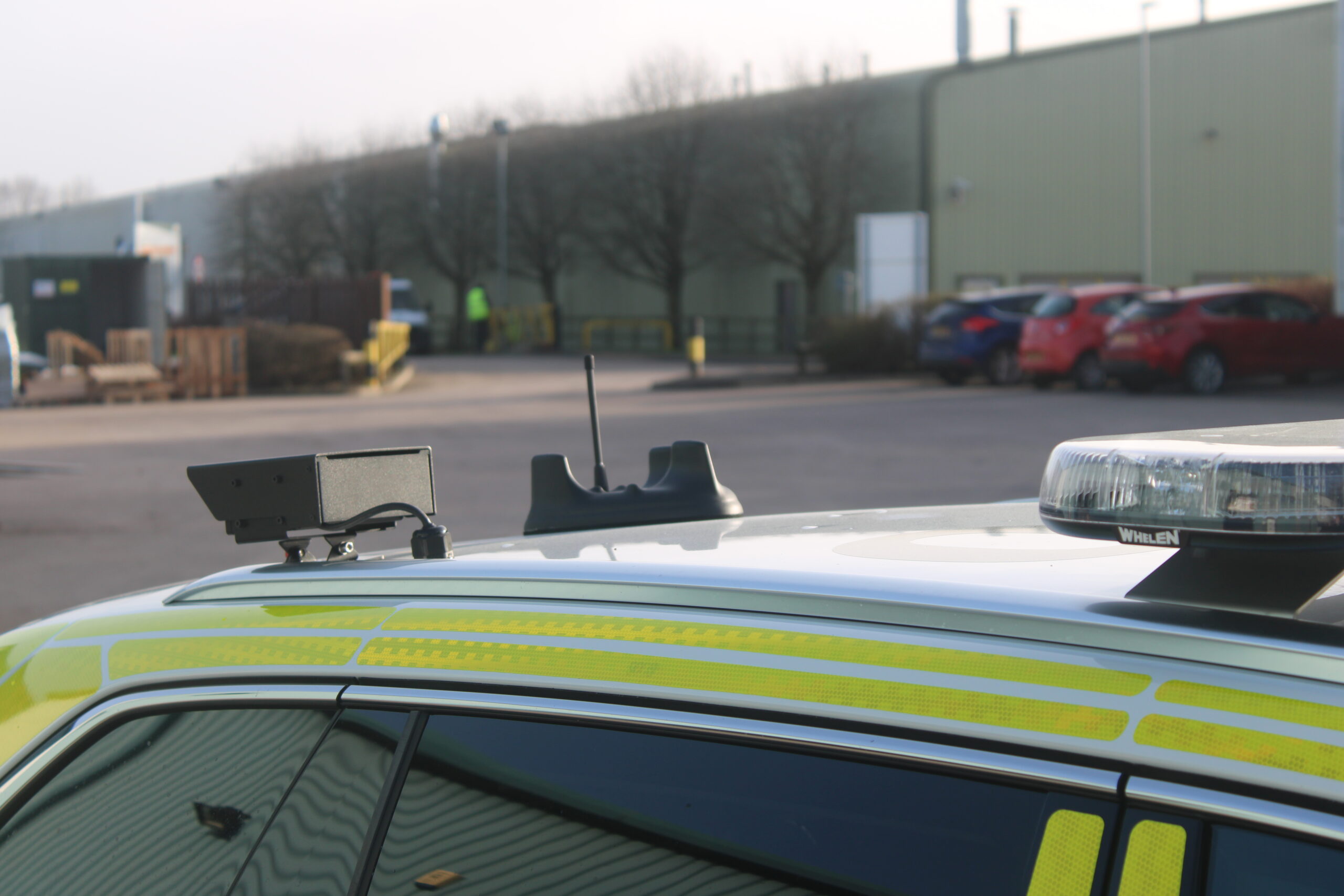

Low Profile Simple single hole installation
GPS/GNSS Ports DC isolated

Description

Part number 8000-310, affectionately known as the ‘Sandcastle’ is a multi-function antenna specifically designed to help your ESN transition.

With 4x Ultra Wideband antenna elements covering 700MHz to 6GHz, this antenna could future proof your vehicle installation for years to come.

It has a minimum 4dBi gain across the band, making it an efficient option for all public safety applications.

With the option of additional MiMo Dual Band WiFi, and optional Tetra whip mounting, the need for drilling extra holes in your vehicles roof is long gone.

With a single hole fitting, the cost of installation is reduced whilst protecting the resale value of your vehicle.

The ‘Sandcastle’ can be supplied with varying combinations of functions to suit the equipment it is being connected to and a wide range of custom low loss coax extension cable kits can also be supplied. Please refer to the datasheets for more details.



Product name Part number
'Sandcastle' 12 in 1 multifunction MiMo Antenna System 8000-310 3x WiFi, 4x LTE, 4x GPS, 1x Tetra
'Sandcastle' 13 in 1 multifunction MiMo Antenna System 8000-311 4x WiFi, 4x LTE, 4x GPS, 1x Tetra
'Sandcastle' 13 in 1 incl 5m Coax Cables Black SK0200710 6x WiFi, 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 13 in 1 incl 5m Coax Cables White SK0200760 6x WiFi, 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 11 in 1 incl 5m Coax Cables Black SK0200720 4x WiFi, 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 11 in 1 incl 5m Coax Cables White SK0200770 4x WiFi, 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 9 in 1 incl 5m Coax Cables Black SK0200730 2x WiFi, 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 9 in 1 incl 5m Coax Cables White SK0200780 2x WiFi, 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 7 in 1 incl 5m Coax Cables Black SK0200740 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 7 in 1 incl 5m Coax Cables White SK0200790 4x LTE, 2x GPS, 1x Tetra
'Sandcastle' 6 in 1 incl 5m Coax Cables Black SK0200750 4x LTE, 1x GPS, 1x Tetra
'Sandcastle' 6 in 1 incl 5m Coax Cables White SK0200800 4x LTE, 1x GPS, 1x Tetra
