Description
The SCTS0TS1-05000-LBC195 is a 5m low-loss RF extension cable using LBC195 coax, equipped with SMA Female to SMA Male connectors for reliable signal transmission in RF applications.

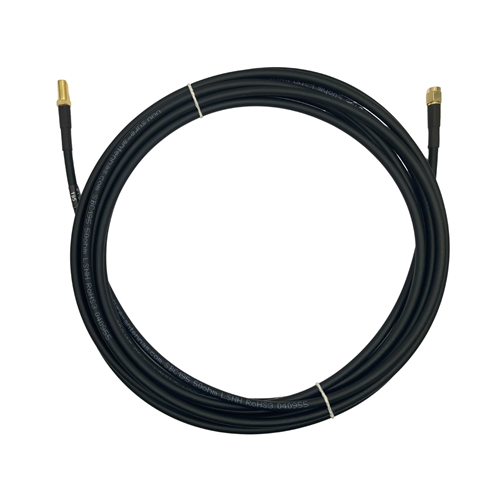

LBC195 – SMA Female to SMA Male Terminated Extension Cable
Sure Antennas can supply custom cables in any length with various connector options. Contact us for more information.
| LBC195 coaxial cable | SMA Female to SMA Male connectors |
| Up to 4000 MHz frequency support | Rated for 500V RMS working voltage and a propagation velocity of 0.8 |
| 4.95mm diameter cable with a static bending radius of 15mm and a durability rating of 500 mating cycles. | Designed to operate reliably in temperatures from -40°C to +85°C, suitable for various indoor and outdoor RF setups. |
| Product name | Part number | |
|---|---|---|
| SMA Female to SMA Male Cable | SCTS0TS1-05000-LBC195 |
Download Datasheet
|
