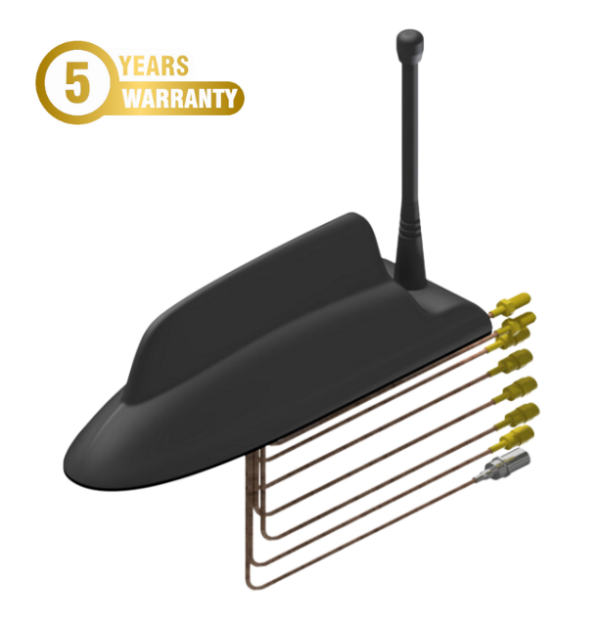

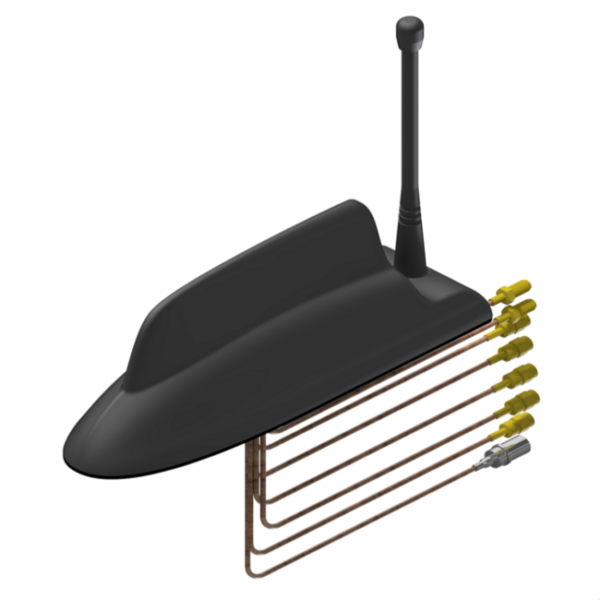

ESN Multi-function Wideband MiMo OEM Sharkfin Antenna – ‘The Mallard’

Product Code 7000-308
This low-profile multi-function MIMO antenna is affectionately known as the ‘Mallard’ and can support up to 9 functions.  The antenna is airwave approved as well as being ESN ready meaning it will help future proof your vehicle. The ‘Mallard’ can be supplied with varying combinations of functions to suit the equipment it is being connected to. It can also be supplied without the tetra whip if this is not required. Please refer to the datasheets for more details.

FREQUENCY BAND

3G, 4G, Custom Frequency, GPS/Glonas, GSM, LTE, LTE Multiband GSM, MiMO, PERRIS, SMART, Tetra, UHF, VHF, WiFi

2x Wideband LTE 2G 3G 4G 5G elements Ultra Wide bandwidth 700MHz – 6000Mhz
Optional MiMo Dual Band WiFi/WiMAX Low profile OEM styled sharkfin
Simple single hole installation GPS/GNSS Ports DC isolated
Optional support for Tetra/WiFi/LTE whip

Description

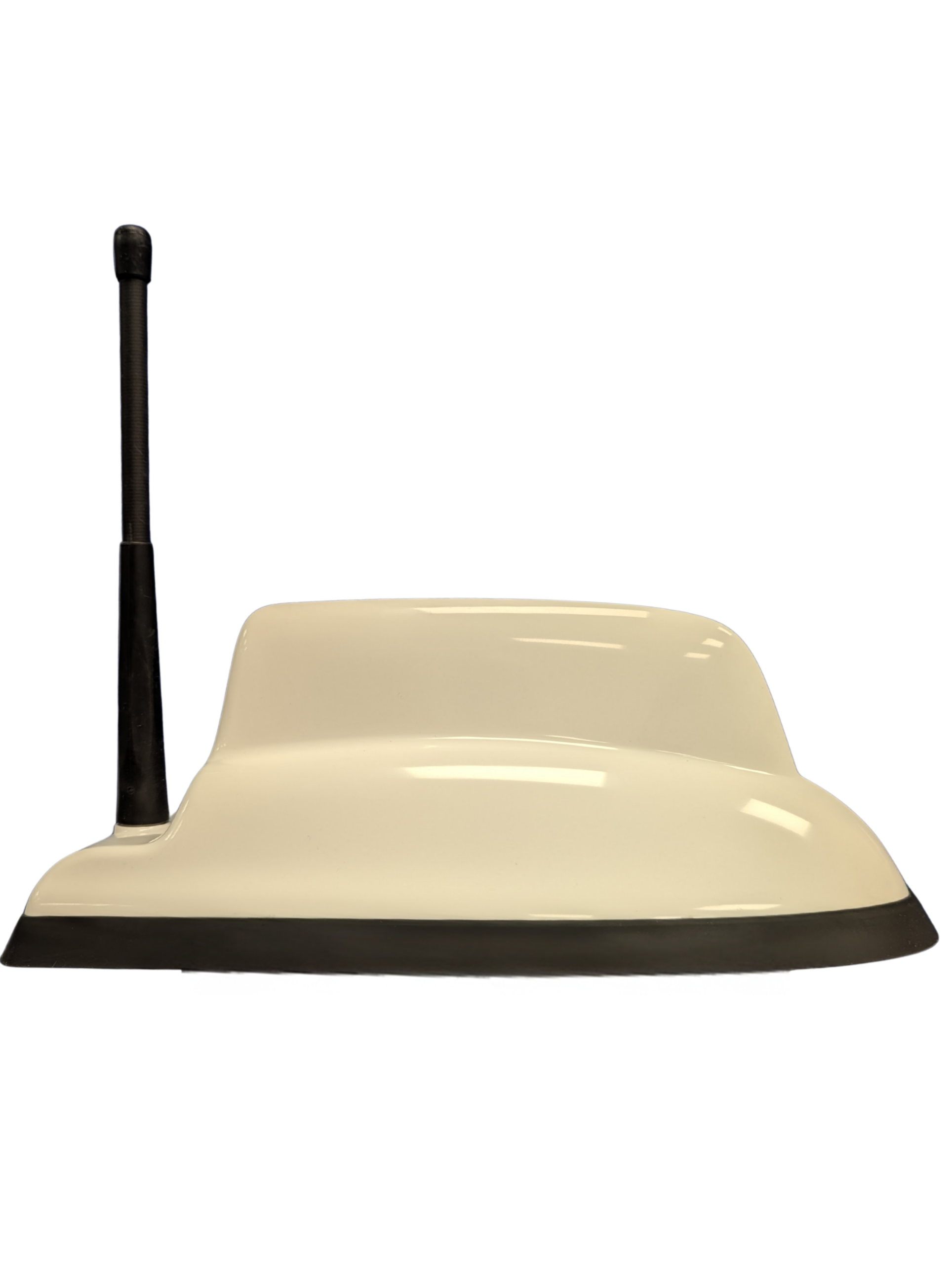

Part number 7000-308 also known as the ‘Mallard’ is an OEM sleek styled compact sharkfin antenna that can support up to nine functions.

Its robust exterior houses  Ultra Wideband antenna elements supporting 700MHz to 6GHz with a minimum 4dBi gain across the whole band.

Designed as a multi-function antenna you have the additional options of a MiMo Dual Band WiFi function, 2x GPS/GNSS Ports, and support for an optional whip to provide many frequency options including Tetra, WiFi or LTE for an additional connection to help your ESN transition.

With a single hole installation, and so many potential frequency functions on offer, this antenna would help reduce installation costs and protect your vehicles resale value by helping to future proof your vehicles installation.

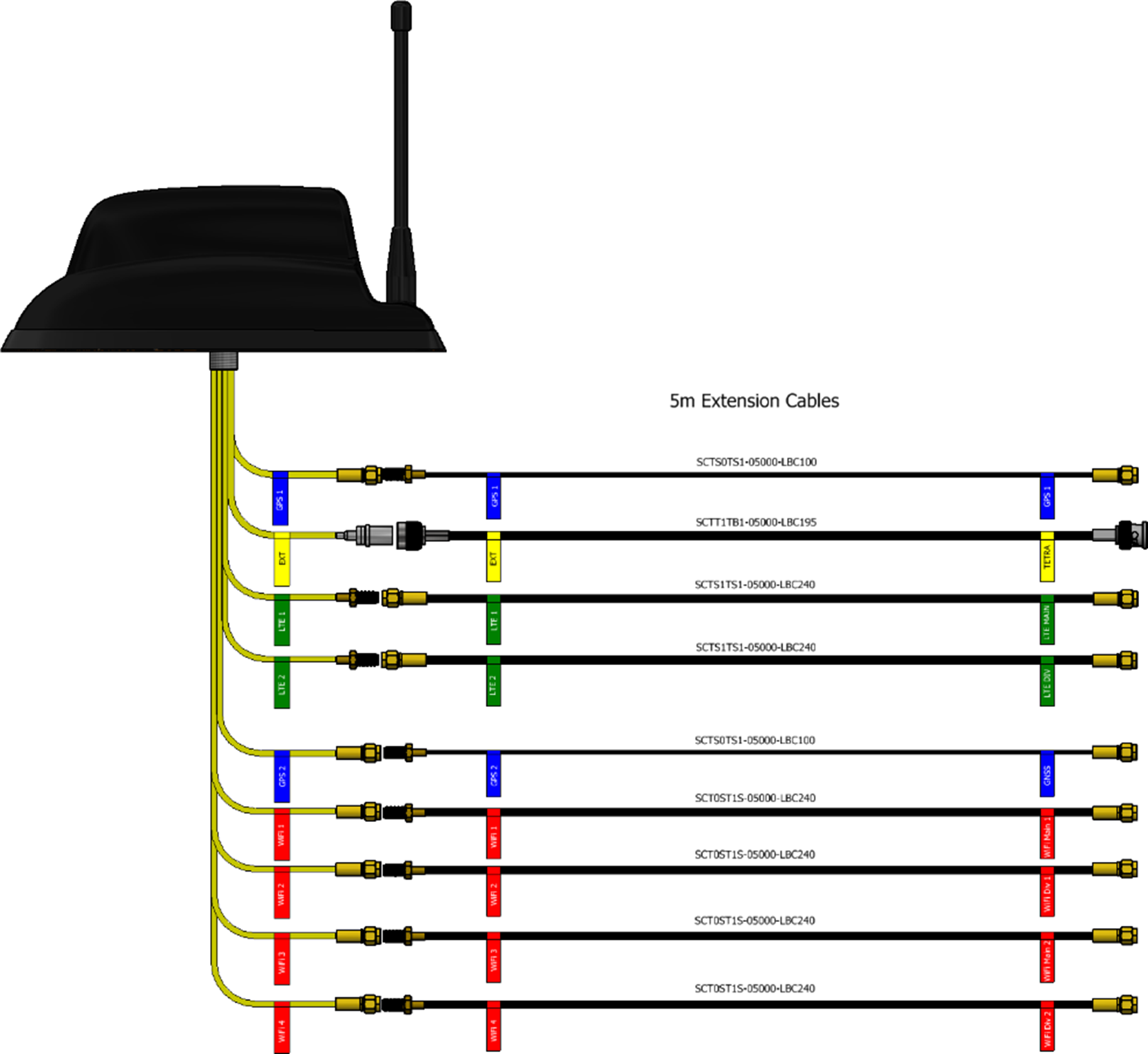

The ‘Mallard’ can be supplied with varying combinations of functions to suit the equipment it is being connected to and a wide range of custom low loss coax extension cable kits can also be supplied.

Please contact us for further information. To discuss, please contact us on 0151 334 9160.

Product name Part number

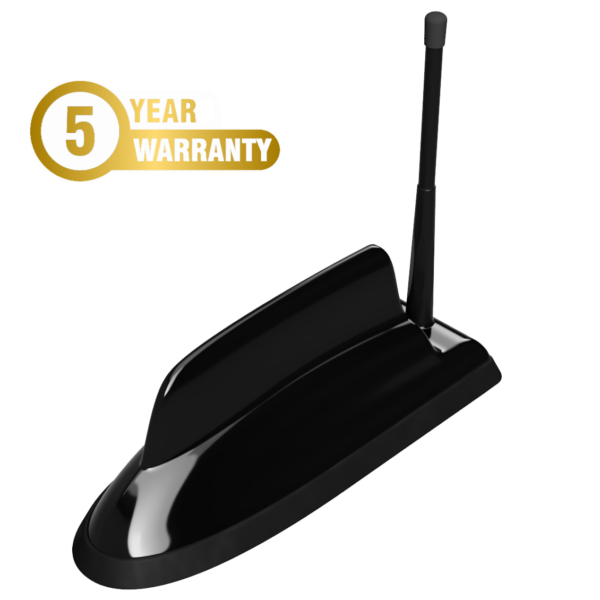

'Mallard' 9 in 1 Black incl 5m Coax Cables SK0200250 4x WiFi, 2x LTE, 2x GPS, 1x Tetra
'Mallard' 9 in 1 White incl 5m Coax Cables SK0200310 4x WiFi, 2x LTE, 2x GPS, 1x Tetra
'Mallard' 8 in 1 Black incl 5m Coax Cables SK0200900 3x WiFi, 2x LTE, 2x GPS, 1x Tetra
'Mallard' 8 in 1 White incl 5m Coax Cables SK0200910 3x WiFi, 2x LTE, 2x GPS, 1x Tetra
'Mallard' 7 in 1 Black incl 5m Coax Cables SK0200260 2x WiFi, 2x LTE, 2x GPS, 1x Tetra
'Mallard' 7 in 1 White incl 5m Coax Cables SK0200320 2x WiFi, 2x LTE, 2x GPS, 1x Tetra
'Mallard' 6 in 1 Black incl 5m Coax Cables SK0200300 4x WiFi, 1x GPS, 1x Tetra
'Mallard' 6 in 1 White incl 5m Coax Cables SK0200360 4x WiFi, 1x GPS, 1x Tetra
'Mallard' 5 in 1 Black incl 5m Coax Cables SK0200270 2x LTE, 2x GPS, 1x Tetra
'Mallard' 5 in 1 White incl 5m Coax Cables SK0200330 2x LTE, 2x GPS, 1x Tetra
'Mallard' 4 in 1 Black incl 5m Coax Cables - LTE SK0200280 2x Cell, 1x GPS, 1x Tetra
'Mallard' 4 in 1 Black incl 5m Coax Cables - WiFi SK0200290 2x WiFi, 1x GPS, 1x Tetra
'Mallard' 4 in 1 White incl 5m Coax Cables - LTE SK0200340 2x Cell, 1x GPS, 1x Tetra
'Mallard' 4 in 1 White incl 5m Coax Cables - WiFi SK0200350 2x Cell, 1x GPS, 1x Tetra
