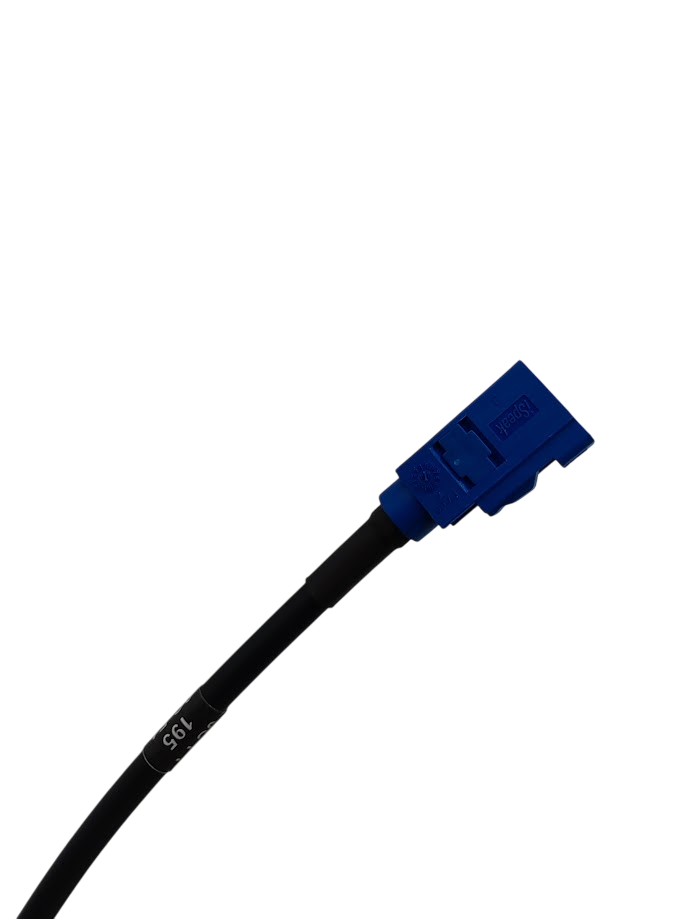

LBC195 – Blue FAKRA Female to FME Male – Terminated Extension Cable

The SCT0CTF1-01500-LBC195 is a 1.5-meter RF extension cable with Blue FAKRA Jack to FME Plug connectors.

Cable Type: SBC-195 coaxial cable, Can also be made in a variety of lengths.
50Ω impedance, 3000MHz max frequency, -14.9dB return loss 4.95mm diameter, 15mm bending radius, 500 mating cycles
Operating: -40°C to +85°C temperature range, 250V RMS working voltage Connectors: Blue FAKRA Jack to FME Plug configuration

Description

The SCT0CTF1-01500-LBC195 is a 1.5-meter RF extension cable made with LBC195 coaxial cable for low-loss signal transmission. It features a Blue FAKRA Jack and FME Plug connectors, providing reliable connectivity for communication and vehicle network applications with minimal signal degradation.

Product name Part number
Extension Cable : 1.5m : LBC195 : Terminated – Blue FAKRA Female to FME Male SCT0CTF1-01500-LBC195 Datasheet Download
