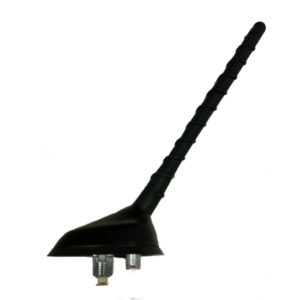

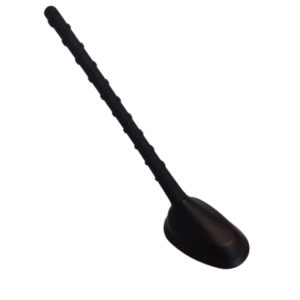

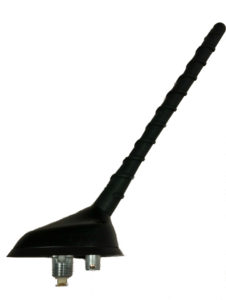

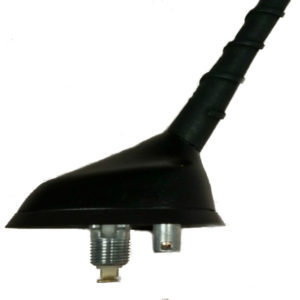

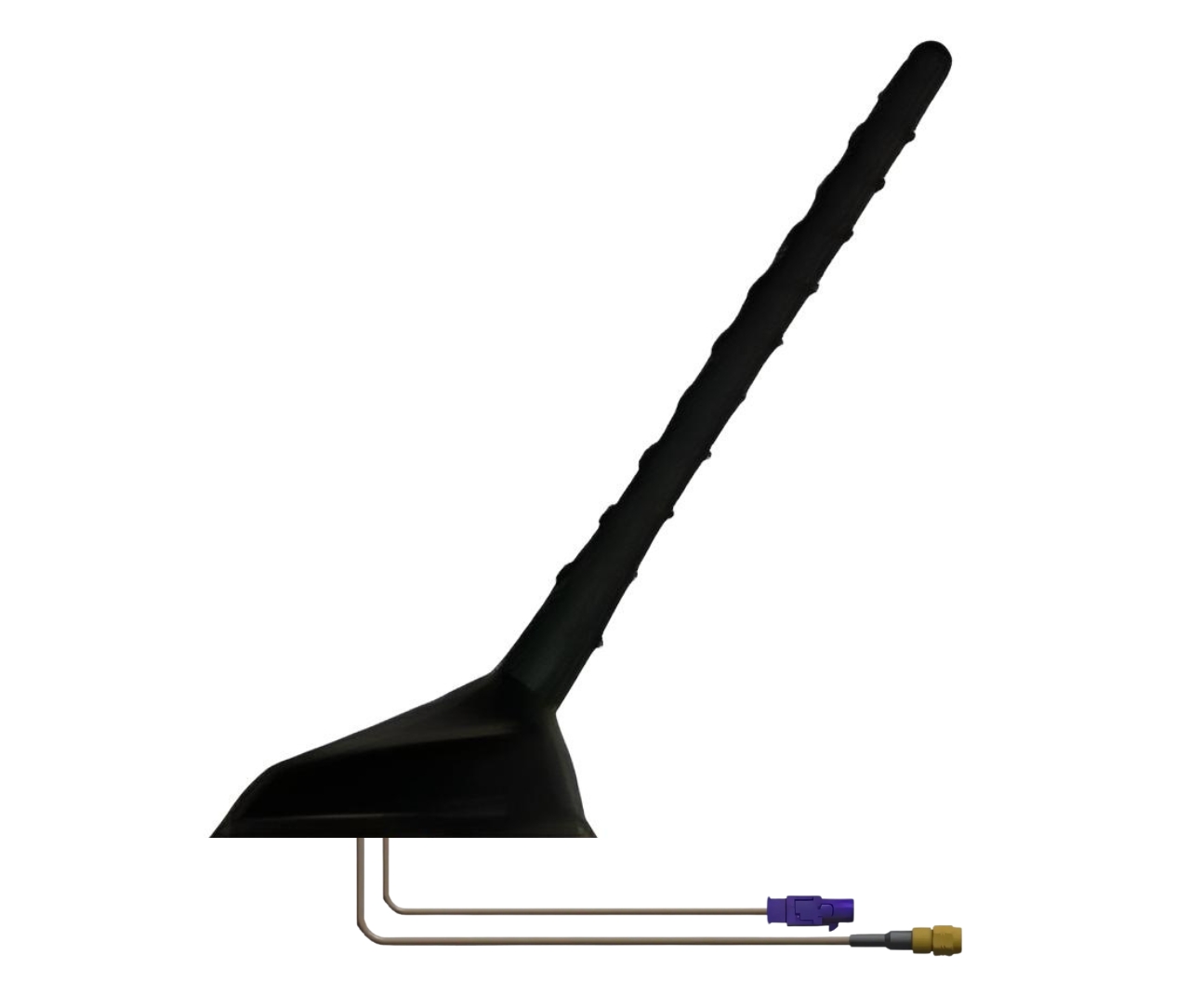

Full Covert Hyundai iLoad i30 Panel Mount Antenna



Product Code SAHY10220
This panel mounted antenna can be modified to compliment a range of frequency bandwidths to obscure the covert nature of your Hyundai.

FREQUENCY BAND

3G, AM/FM, DAB, GPS, GSM, PERRIS, SMART, TETRA, UHF, VHF, WLAN

Panel mount OEM Hyundai centre roof
Removable whip for vehicle maintanence DAB amplifier available
Original OEM connections can be retained

Description

This covert antenna is a genuine OEM panel mount roof antenna from Hyundai fitted to the iLoad and i30 model range.

With a large base it can be used as a general purpose antenna that would be an ideal replacement for any vehicle to provide multi-functions.

The antenna features a removable whip to allow for maintenance. Optional RF connectors can be specified when ordering, and can be supplied with a full range of extension cable assemblies and multiplexers to allow you to retain AMFM functions of a vehicle.

All our antennas are modified to your required frequency and each antenna fully tested to specification before leaving our technicians.

Availability on this antenna is usually within five working days, depending on the colour requirement and frequency requirements.

Please contact us on 0151 334 9160 for more details.

Product name Part number
Hyundai iLoad i30 Roof Antenna 139-157, AMFM SAHY10220-B3-K HYUNDAI-SAHY10220-B3-K.pdf
Hyundai iLoad i30 Roof Antenna 139-157, AMFM, GPS SAHY10220-B3-K-B HYUNDAI-SAHY10220-B3-K-B.pdf
Hyundai iLoad i30 Roof Antenna 141-151 SAHY10220-B5 HYUNDAI-SAHY10220-B5.pdf
Hyundai iLoad i30 Roof Antenna 141-151, AMFM SAHY10220-B5-K HYUNDAI-SAHY10220-B3-K
Hyundai iLoad i30 Roof Antenna 141-151, AMFM, GPS SAHY10220-B5-K-B HYUNDAI-SAHY10220-B3-K-B
Hyundai iLoad i30 Roof Antenna 149-159 SAHY10220-B8 HYUNDAI-SAHY10220-B8
Hyundai iLoad i30 Roof Antenna 149-159, AMFM SAHY10220-B8-K HYUNDAI-SAHY10220-B8-K
Hyundai iLoad i30 Roof Antenna 149-159, AMFM, GPS SAHY10220-B8-K-B HYUNDAI-SAHY10220-B8-K-B
Hyundai iLoad i30 Roof Antenna 156-162 SAHY10220-C2 HYUNDAI-SAHY10220-C2
Hyundai iLoad i30 Roof Antenna 156-162, AMFM SAHY10220-C2-K HYUNDAI-SAHY10220-C2-K
Hyundai iLoad i30 Roof Antenna 156-162, AMFM, GPS SAHY10220-C2-K-B HYUNDAI-SAHY10220-C2-K-B
Hyundai iLoad i30 Roof Antenna 159-174 SAHY10220-3 HYUNDAI-SAHY10220-3
Hyundai iLoad i30 Roof Antenna 159-174, AMFM SAHY10220-3-K
Hyundai iLoad i30 Roof Antenna 159-174, AMFM, GPS SAHY10220-3-K-B HYUNDAI-SAHY10220-3-K-B
Hyundai iLoad i30 Roof Antenna 162-174 SAHY10220-C4 HYUNDAI-SAHY10220-C4-1.pdf
Hyundai iLoad i30 Roof Antenna 162-174, AMFM SAHY10220-C4-K HYUNDAI-SAHY10220-C4-K
Hyundai iLoad i30 Roof Antenna 162-174, AMFM, GPS SAHY10220-C4-K-B HYUNDAI-SAHY10220-C4-K-B
Hyundai iLoad i30 Roof Antenna 350-392 SAHY10220-F2 HYUNDAI-SAHY10220-F2-1
Hyundai iLoad i30 Roof Antenna 350-392, AMFM SAHY10220-F2-K HYUNDAI-SAHY10220-F2-K-B
Hyundai iLoad i30 Roof Antenna 350-392, AMFM, GPS SAHY10220-F2-K-B HYUNDAI-SAHY10220-F2-K-B-1
Hyundai iLoad i30 Roof Antenna 380-430 SAHY10220-F7 HYUNDAI-SAHY10220-F7
Hyundai iLoad i30 Roof Antenna 380-430, AMFM SAHY10220-F7-K HYUNDAISAHY10220-F7-K-B
Hyundai iLoad i30 Roof Antenna 380-430, AMFM, GPS SAHY10220-F7-K-B HYUNDAISAHY10220-F7-K-B-1
Hyundai iLoad i30 Roof Antenna 410-470 SAHY10220-G9 HYUNDAI-SAHY10220-G9
Hyundai iLoad i30 Roof Antenna 410-470, AMFM SAHY10220-G9-K HYUNDAI-SAHY10220-G9-K
Hyundai iLoad i30 Roof Antenna 410-470, AMFM, GPS SAHY10220-G9-K-B HYUNDAI-SAHY10220-G9-K-B
Hyundai iLoad i30 Roof Antenna 450-470 SAHY10220-R HYUNDAI-SAHY10220-R
Hyundai iLoad i30 Roof Antenna 450-470, AMFM SAHY10220-R-K HYUNDAI-SAHY10220-R-K
Hyundai iLoad i30 Roof Antenna 450-470, AMFM, GPS SAHY10220-R-K-B HYUNDAI-SAHY10220-R-K-B
