Description
RF extension cable with Water Blue FAKRA connectors, designed for automotive and communication applications requiring reliable signal transmission with moderate flexibility.

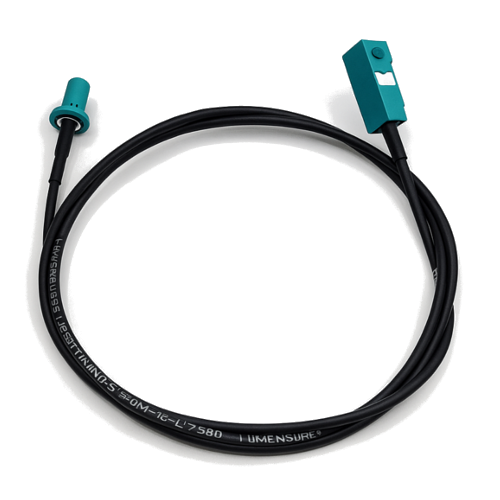

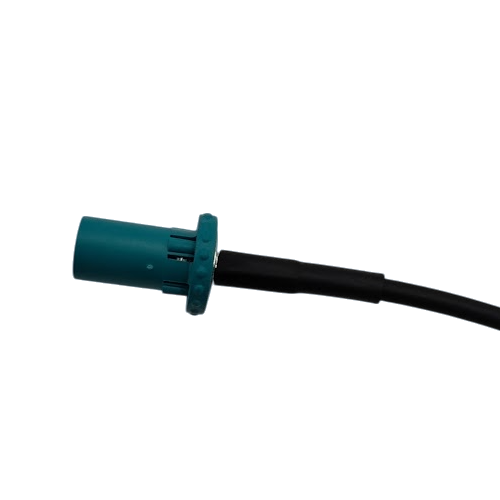

LBC100 Water Blue FAKRA Female to Water Blue FAKRA Male Terminated Extension Cable
SCTS0ZT1Z-05000-LBC100 Extension Cable : 5m : LBC100 : Terminated – Water Blue FAKRA Female to Water Blue FAKRA Male
| Connectors: Water Blue FAKRA Female to Male with color-coded identification | LBC100 coaxial cable with 50Ω impedance and 2.79mm diameter for consistent performance |
| Supports up to 4GHz operating frequency with -14.9dB minimum return loss | Operating temperature range from -40°C to +85°C for harsh automotive conditions |
| 500 mating cycles with cable retention equal to breaking strain for long-term reliability | Maximum working voltage of 500V RMS with 66% propagation velocity and 6.4mm bending radius |
| Product name | Part number | |
|---|---|---|
| LBC100 : Terminated – Water Blue FAKRA Female to Water Blue FAKRA Male | SCTS0ZT1Z-05000-LBC100 |
Datasheet PDF
|
